Model 5000/5100 openGear card compatiblePDS-REM
PDS-REM

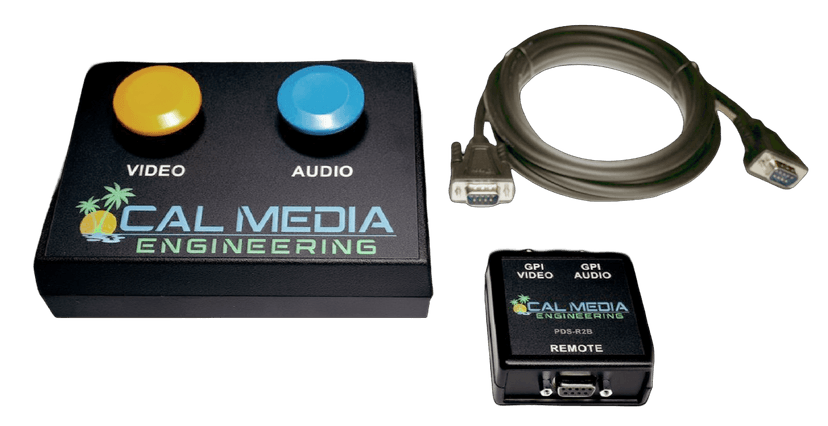

Remote Switchbox Kit
The PDS-REM Remote Switchbox provides independent switching capability for two GPI inputs of the Model 5100 card in order to switch to safe inputs. A second switchbox kit may be purchased to control the third and fourth GPI inputs for two operator/two tap control. Configurable through the Dashboard control software, the switchbox can provide independent switching of audio and video to safe inputs, or combined audio/video switching from a single switch.

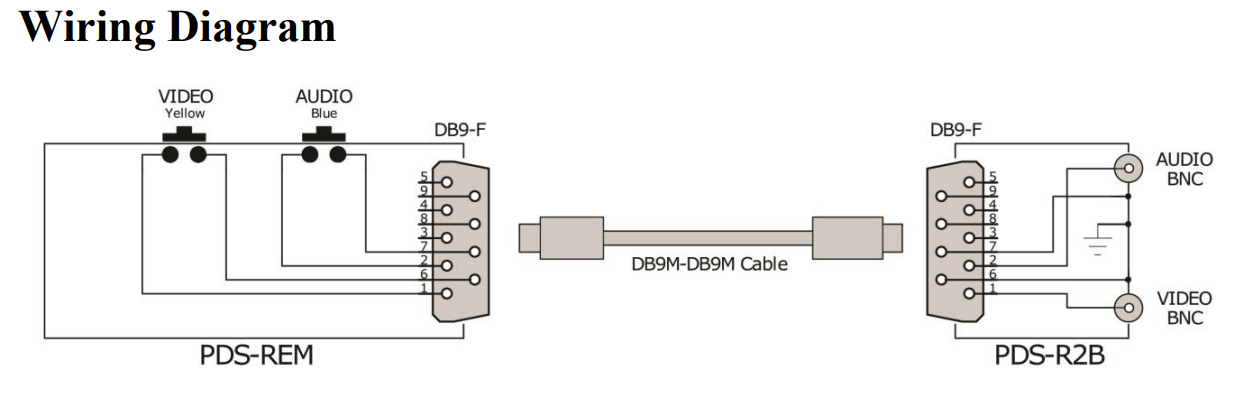

Wiring
Diagram
Diagram
List Price
$750 USD
Features
| Switch Lifespan | 250,000 cycles (electrical), 5,000,000 cycles (mechanical) |
| Remote Adapter Included | 2 BNC to DB9-Female adapter box, allows up to 1,000 feet of serial cable run between the adapter and switch box |
| Serial Cable Included | 50 ft Shielded DB9-Male to DB9-Male serial cable |
| Configurable Switching Modes | Switches are independently configurable for audio or video switching to safe inputs, or combined audio/video switching from one switch |
| Configurable Reaction Time | Reaction time is programmable from 0 to 6 seconds in 0.1 second increments, allowing up to 6 seconds in order to reach a switch after the offensive content occurs, and without affecting immediate return from the safe input when the switch is released. |
| Warranty | Limited 5 year warranty |
